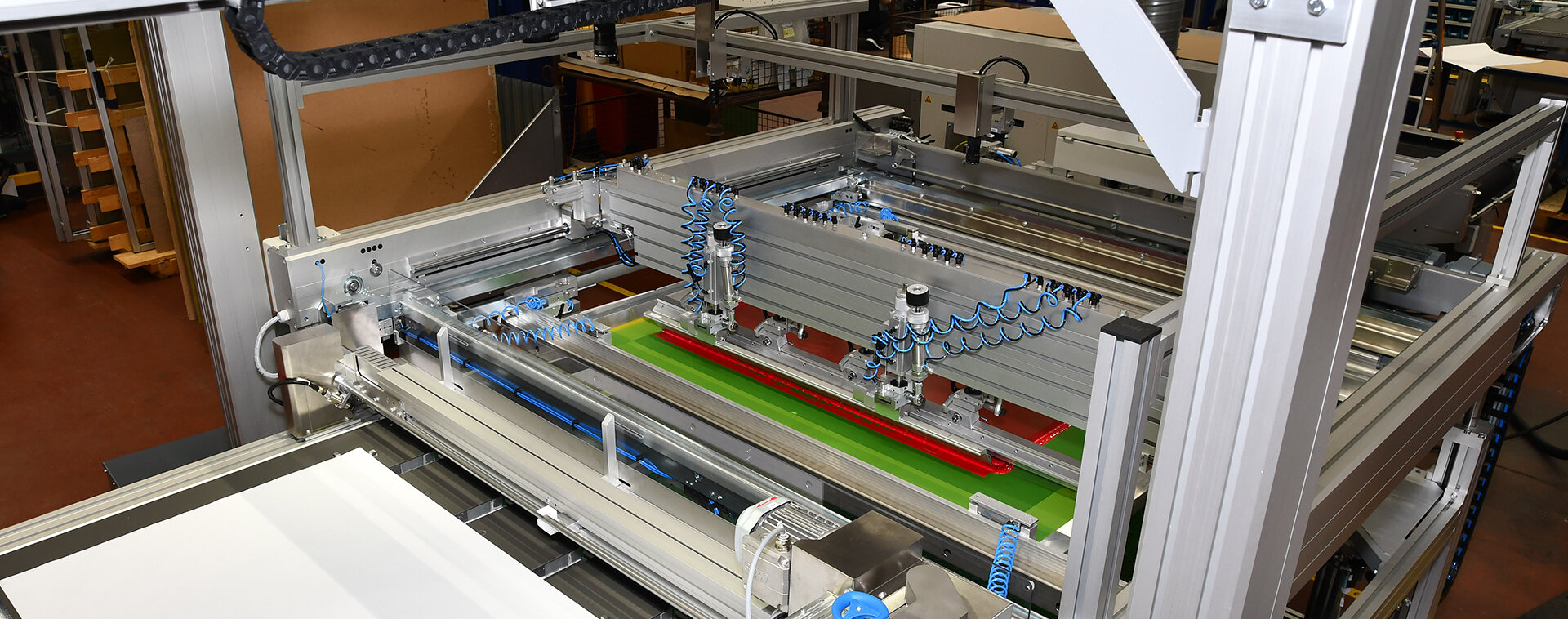

THIEME 3000 Vision

3/4-automatic, flatbed, shuttle table screen printing machine with automatic take-off system
specifically designed for film, sheet metal, and electronics applications

screen printing series

THIEME 3000 Vision

3/4-automatic, flatbed, shuttle table screen printing machine with automatic take-off system specifically designed for film, sheet metal, and electronics applications

Why THIEME ?

Thieme Quality „Made in Germany“
Individually configured and manufactured according to customer requirements
Print sizes up to 1550 x 2100 mm
Individual customer-specific special formats
High output and repeatability
Short set-up times

Specifics

User friendly operation
SPS control system with touch-screen display
Proven THIEME squeegee Unit
Complete equipment with multiple options
High value retention
Easy to use, labor saving
Modem for remote diagnostics
Highest precision through camera-assisted substrate alignment
System enables processing of films below 100μm
Also suitable for rigid materials
Proven Thieme Vision System for screen and substrate alignment
Optional Advanced Print Control (APC) for setup time optimization
Customizable with extensive machine options
Intuitive machine operation

THIEME Vision-System

The THIEME 3000 Vision AL comes standard with the THIEME Vision-System.

The THIEME Vision-System essentially consists of two independent camera systems and the associated control software. One of the camera systems is used for automatic screen positioning and one for automatic substrate alignment.

THIEME Vision - Screen positioning

The days of manual adjustment of screen position belong to the past. Set up your Thieme screen printing machine in less time and gain valuable production time. The Thieme Vision screen positioning system works with an very high accuracy, minimizing set up prints.

Automatic Setup
Reduce set-up times
High-precision screen alignment
Minimum make ready prints

THIEME Vision - Substratate positioning

Reduction of set up prints and an improvement in accuracy?

Increase your productivity and quality. The Thieme Vision system allows a new level of quality.

High-precision printing-material alignment
Reduction of make ready prints
Eliminates placement errors
High reproducibility

Screen positioning
Number of cameras	2 / expandable
Mechanical repeatability [μm]	+ / - 40
Alignment mark [mm]	round, white, ø3
Screen adjustment	motorized

Substrate positioning
Number of cameras	2 / expandable
Mechanical repeatability [μm]	+ / - 30
Alignment mark [mm]	flexible
Table alignment	servomotor, air, bearing

Technical data

Type of machine	3010 Vision	3020 Vision	3030 Vision	3040 Vision	3050 Vision	3060 Vision
Print size [mm]	550x750	750x1050	1000x1400	1200x1600	1400x1800	1550x2100
Frame size [mm]	1000x1100	1200x1400	1450x1750	1700x2000	1900x2200	2050x2500
Sheet size max. [mm]	580x780	780x1080	1030x1420	1230x1670	1430x1870	1580x2170
External dimension L x W [mm]	2225x1732	2625x2032	3125x2382	3575x2632	3975x2832	4275x3132
Screen fine tuning X-X-Y [mm]	+/- 5
Squeegee speed [m/sec]	0,2-1,4
Max. range of substrate thickness [mm]	1/2 automatic = 50 \| 3/4 automatic = 16
Substrate thickness*1 min. [μm]	50
Screen adjustment [m/sec]	+ / - 6
Alignment accuracy	+ / - 50 μm at cmk 1,67; absolut + / - 30 μm
Position Camera marks Table orientation	Complete sheet area freely selectable
Position Camera marks Screen direction	Position selectable by arrangement
Print direction	In the direction of transport, optionally also cross printing
Circuit connection [kW]	2,8
Power supply [V]	400/230
Consumption	4/400, 7/230
All technical information is not binding and subject to change. *¹ Depending of material

Customized innovative machine options

APC
Advanced-Print-Control

Detection & correction of register deviations during setup
Cyclic checking / readjustment

Anti-Drip

Anti-drip for printing and/or flood squeegees

Barcode Handscanner

For documentation of material batches (film, paint)
To call the print program

Integrated Barcodesystem

Barcode imprint on first print
Documentation (traceability)

Screen stretch compensation

Effects of screen stretch compensation can be minimized

Humidity control

Automatically humidify the printing environment
Reduces drying of the screen

Screen clean

Automatic screen humidification (screen clean)
Removes dried paint without manual cleaning

Integrated substrate
cleaning

Automatic foil cleaning before printing

Paste dosing

Pastes are supplied cyclically

Screen pull-out system

Screen cleaning outside the printing station

Applications

The application opportunities of functional printing processes know no bounds and something new is being added every day: for example, the production of antennas, membrane keypads or strip conductors.
We support our customers in the development of new processes by providing process entry solutions ("Lab-to-Fab"), which we test in our own Technology Center. We also perform feasibility studies.

More ...
Are you seeking solutions for the production of fuel cells, thin-layer solar cells (CIGS, DSSC, etc.), batteries or the like? Thieme designs its customized print line in close collaboration with its customers.

Machines are built for roll-to-roll, thin layer on glass, and even for high-precision screen printing applications.
More ...
The decorative printing of front foils and keyboard membranes for the production of flat input systems always require a customised design. The Thieme screen printing and digital printing solutions leave nothing to be desired.
More ...
(In-Mold Labeling / Film Insert Molding)
Thieme's industrial digital printing system offers new possibilities for coloured and decorated injection-moulded parts. It meets the same requirements in terms of durability, adhesion or formability as apply in screen printing. The digital printing system's particular benefits comprise improved reproduction of colour gradients and the display of fine writing. Its high flexibility enables a more cost-effective small batch production.
